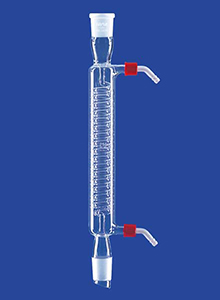

Spiral condensers, with GL threads
Spiral condensers for cooling condensates, with NS socket and NS cone, water connection: GL 14 threads (with two threaded plastic olives), made of DURAN® tubing
| Socket and cone (NS) | Jacket length (mm) | Cooling surface (cm²) | Pack (qty.) | Cat. No. |
|---|---|---|---|---|
| 14/23 | 160 | 230 | 1 | 5 2332 11 |
| 29/32 | 250 | 500 | 1 | 5 2333 14 |
| 29/32 | 400 | 820 | 1 | 5 2334 14 |
| 29/32 | 500 | 1040 | 1 | 5 2335 14 |
