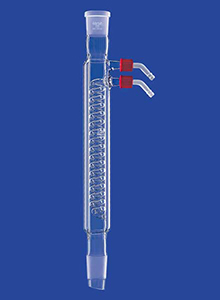

Coil condensers (double walled), with GL threads
Coil condensers acc. to DIN 12593 and in addition to DIN, for condensing vapours, with cooling coil and jacket, with NS socket and NS cone, water connection: GL 14 threads (with two plastic olives), made of DURAN® tubing
| Socket and cone (NS) | Jacket length (mm) | Cooling surface (cm²) | DIN | Pack (qty.) | Cat. No. |
|---|---|---|---|---|---|
| 14/23 | 160 | 240 | — | 1 | 5 2502 11 |
| 29/32 | 160 | 240 | 12593 | 1 | 5 2502 14 |
| 24/29 | 250 | 400 | — | 1 | 5 2503 13 |
| 29/32 | 250 | 400 | 12593 | 1 | 5 2503 14 |
| 29/32 | 400 | 650 | 12593 | 1 | 5 2504 14 |
| 29/32 | 500 | 840 | — | 1 | 5 2505 14 |
