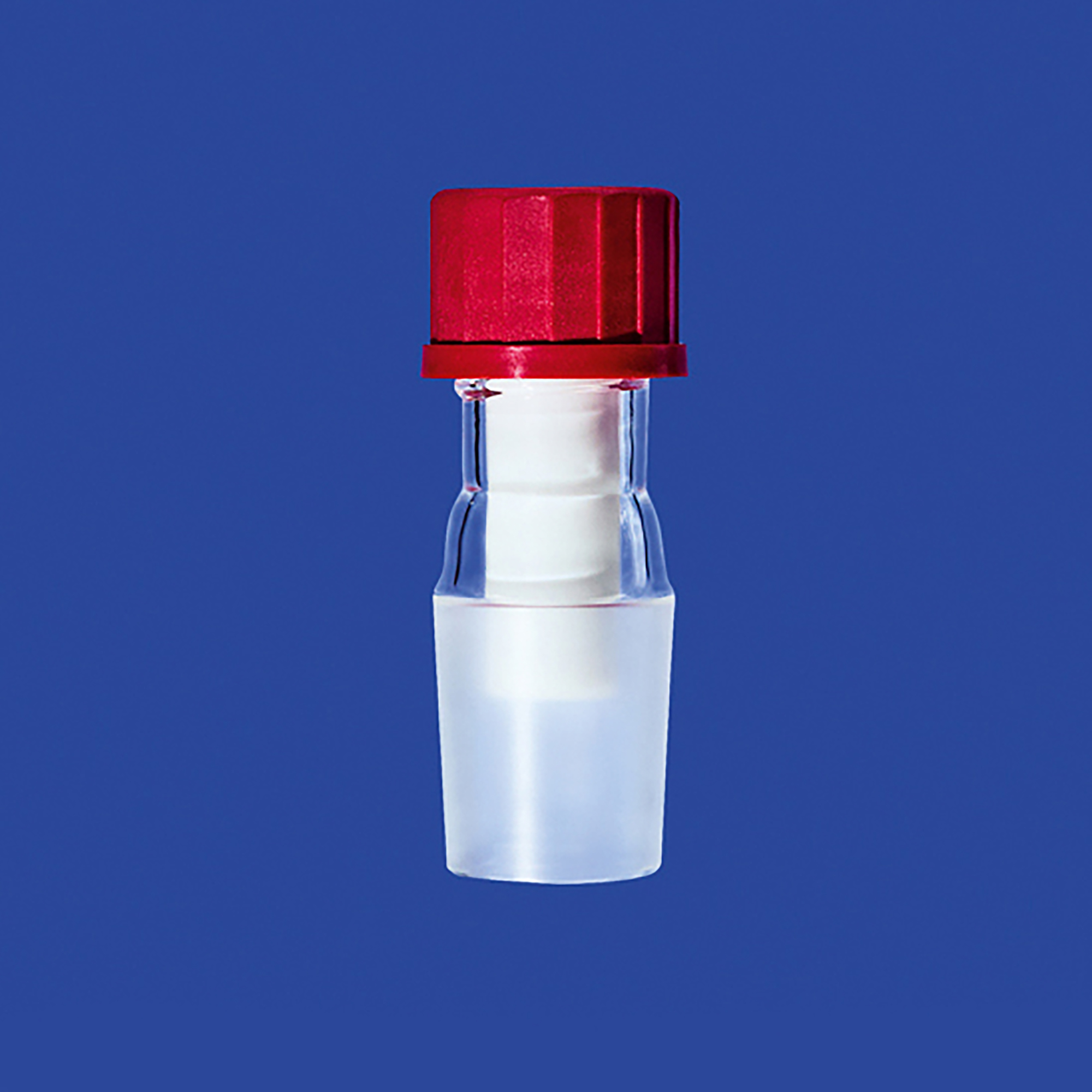

Stirrer bearings with GL male thread
Stirrer bearings with screw cap, closure made of DURAN® tubing, further materials: PTFE (bearing), PTFE-FPM (special sealing), PPS (screw cap); all parts are easily interchangeable
Download Datasheet| Cone (NS) | Thread (GL) | For shaft (dia. mm) | Total length (mm) | Pack (qty.) | Cat. No. |
|---|---|---|---|---|---|
| 29/32 | 25 | 10 | 70 | 1 | 6 3030 29 |
| 45/40 | 25 | 10 | 85 +/- 3 mm | 1 | 6 3030 45 |
| 45/40 | 32 | 16 | 85 +/- 3 mm | 1 | 6 3036 45 |
×
![]()
