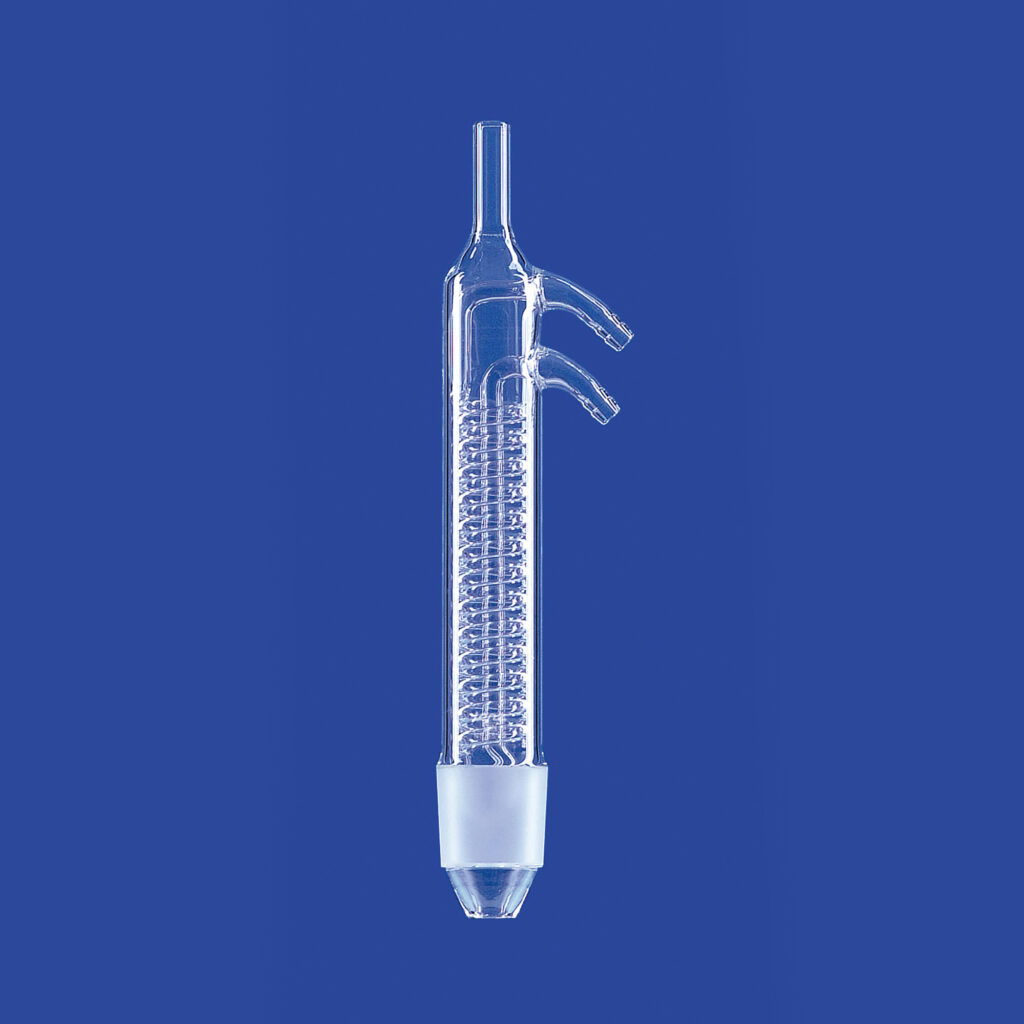

Dimroth condensers, with glass olives
Dimroth condensers acc. to DIN 12591 and in addition to DIN standard, for condensing vapours, with NS socket and NS cone, water connection: glass olives, made of DURAN® tubing
Download Datasheet| Socket and cone (NS) | Jacket length (mm) | Cooling surface (cm²) | DIN | Pack (qty.) | Cat. No. |
|---|---|---|---|---|---|
| 14/23 | 160 | 140 | – | 1 | 5 2402 01 |
| 19/26 | 160 | 140 | – | 1 | 5 2402 02 |
| 14/23 | 250 | 240 | – | 1 | 5 2403 01 |
| 19/26 | 250 | 440 | – | 1 | 5 2403 02 |
| 24/29 | 250 | 440 | – | 1 | 5 2403 03 |
| 29/32 | 250 | 440 | 12591 | 1 | 5 2403 04 |
| 45/40 | 250 | 810 | – | 1 | 5 2403 06 |
| 29/32 | 400 | 740 | 12591 | 1 | 5 2404 04 |
| 45/40 | 400 | 1380 | – | 1 | 5 2404 06 |
×
![]()
