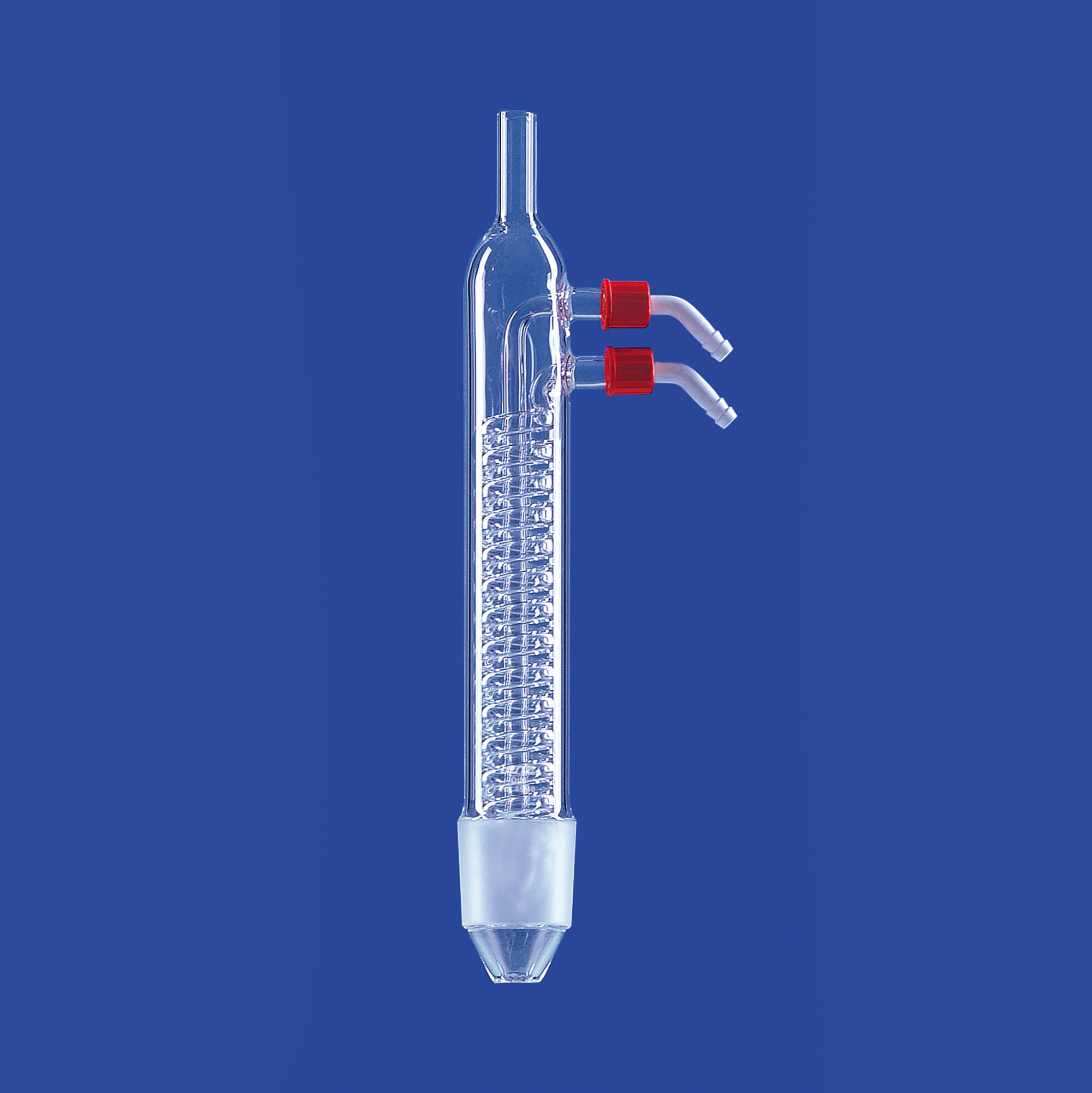

Dimroth condensers, with GL threads
Dimroth condensers acc. to DIN 12591 and in addition to DIN standard, for condensing vapours, with NS socket and NS cone, water connection: GL 14 thread (with two olives), made of DURAN® tubing
Download Datasheet| Socket and cone (NS) | Jacket length (mm) | Cooling surface (cm²) | DIN | Pack (qty.) | Cat. No. |
|---|---|---|---|---|---|
| 14/23 | 160 | 140 | – | 1 | 5 2402 11 |
| 19/26 | 160 | 140 | – | 1 | 5 2402 12 |
| 14/23 | 250 | 240 | – | 1 | 5 2403 11 |
| 19/26 | 250 | 440 | – | 1 | 5 2403 12 |
| 24/29 | 250 | 440 | – | 1 | 5 2403 13 |
| 29/32 | 250 | 440 | 12591 | 1 | 5 2403 14 |
| 45/40 | 250 | 810 | – | 1 | 5 2403 16 |
| 29/32 | 400 | 740 | 12591 | 1 | 5 2404 14 |
| 45/40 | 400 | 1380 | – | 1 | 5 2404 16 |
×
![]()
